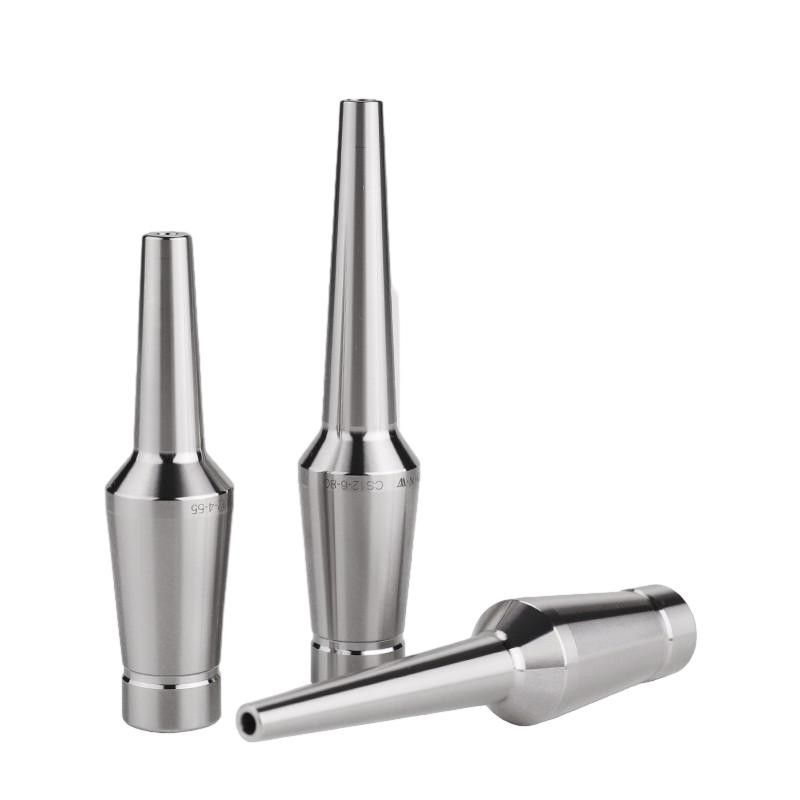

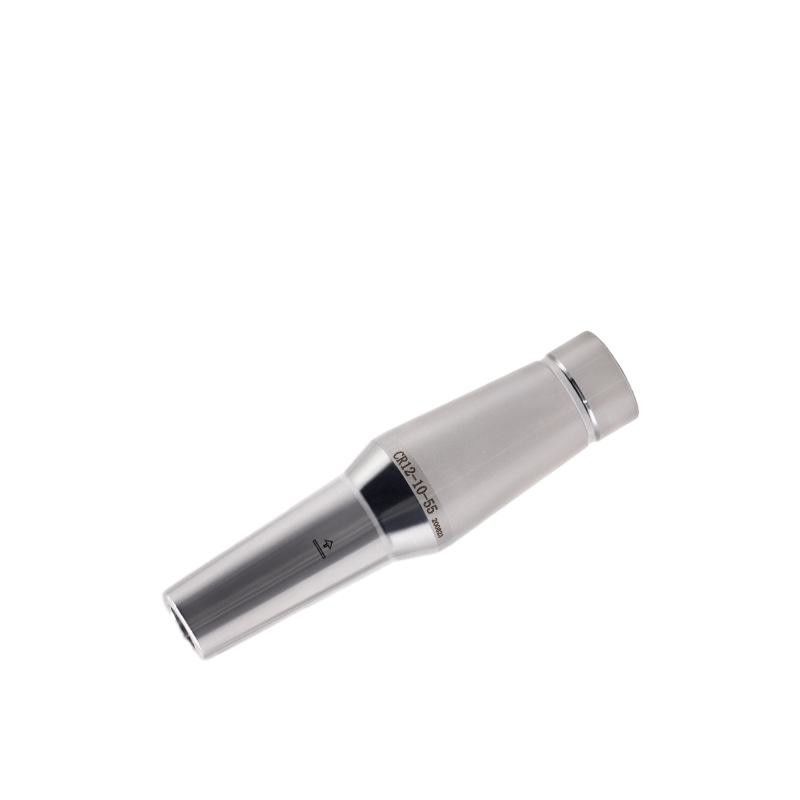

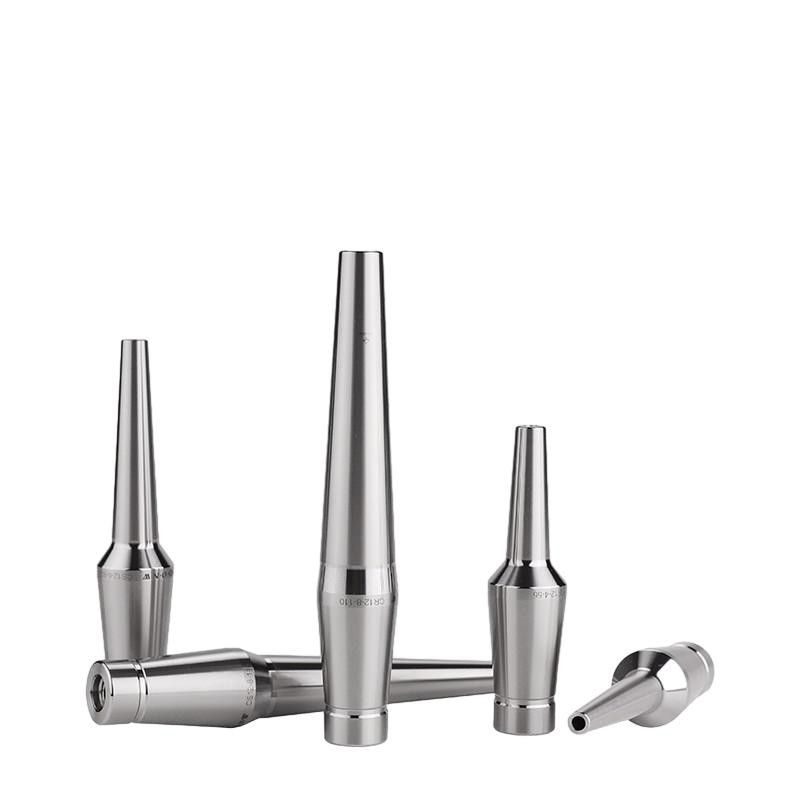

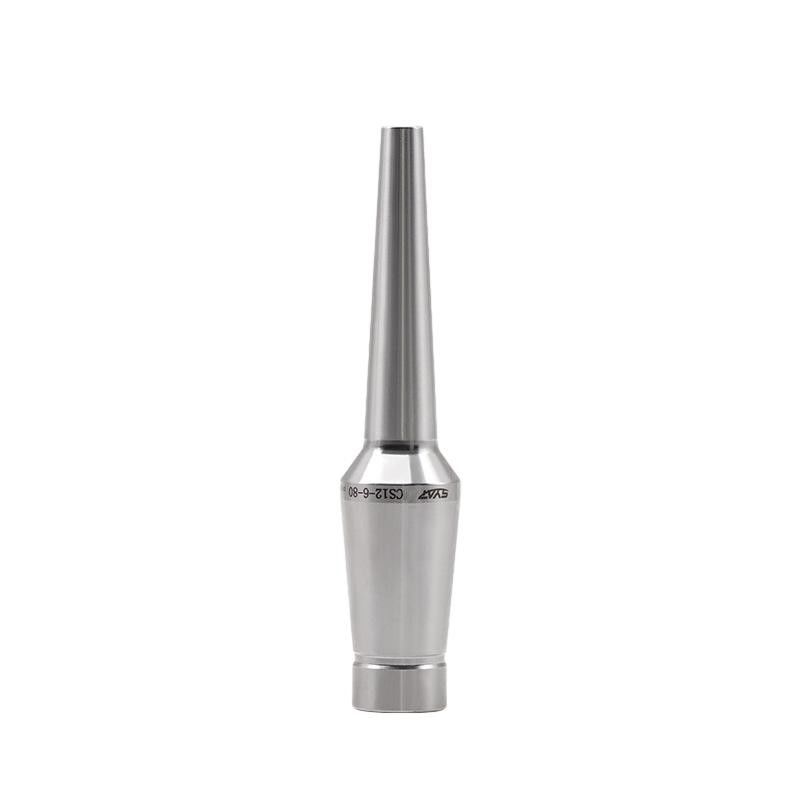

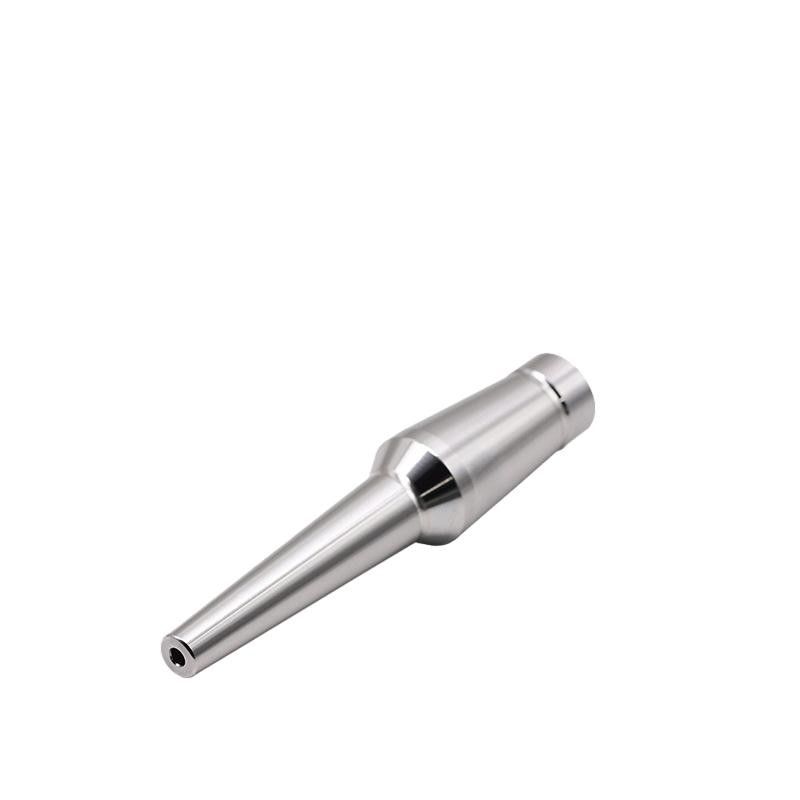

Slim ECR12 Hot Fitting Collet Standard Type Hit Shink Chuck Ekstensi untuk pabrik dan bor
Deskripsi produksi:
Shrink Chuck Extension Slim adalah alat yang digunakan dalam proses mesin.
Hal ini dirancang untuk memperluas jangkauan shrink fit chuck, yang memungkinkan untuk mesin di daerah yang sulit dijangkau
Fitur:
1. Desain ramping mengurangi kontur interferensi pemegang
2. Keakuratan Tinggi
3. ketahanan kejut yang kuat
4. Bahan: baja alkali
5Kekerasan pengolahan panas: HRC50-52
6. akurasi runout: 0.003mm
Spesifikasi:
| Model | D | C | t | L | M | C1 | H |
| ECR12-3-35 | 3 | 7.5 | 2.25 | 35 | 22 | 9.9 | 10 |
| ECR12-3-55 | 55 | 42 | 12 | ||||
| ECR12-3-80 | 80 | 67 | 14.6 | ||||
| ECR12-3-110 | 110 | 97 | 19.2 | ||||
| ECR12-4-35 | 4 | 10 | 3 | 35 | 22 | 12.4 | 12 |
| ECR12-4-55 | 55 | 42 | 14.5 | ||||
| ECR12-4-80 | 80 | 67 | 17.1 | ||||
| ECR12-4-110 | 110 | 97 | 20.2 | ||||
| ECR12-4-130 | 130 | 117 | 22.3 | ||||
| ECR12-6-35 | 6 | 12 | 3 | 35 | 22 | 14.4 | 18 |
| ECR12-6-55 | 55 | 42 | 16.5 | ||||
| ECR12-6-80 | 80 | 67 | 19.1 | ||||
| ECR12-6-110 | 110 | 97 | 22.2 | ||||
| ECR12-6-130 | 130 | 117 | 24.3 | ||||
| ECR12-8-35 | 8 | 14 | 3 | 35 | 22 | 16.4 | 24 |
| ECR12-8-55 | 55 | 42 | 18.5 | ||||
| ECR12-8-80 | 80 | 67 | 21.1 | ||||
| ECR12-8-110 | 110 | 97 | 24.2 | ||||
| ECR12-8-130 | 130 | / | / | ||||
| ECR12-10-35 | 10 | 16 | 3 | 35 | 22 | 18.4 | 30 |
| ECR12-10-55 | 55 | 42 | 20.5 | ||||
| ECR12-10-80 | 80 | 67 | 23.1 | ||||
| ECR12-10-110 | 110 | / | / | ||||
| ECR12-10-130 | 130 | / | / | ||||
| ECR12-12-35 | 12 | 20 | 4 | 35 | 22 | 22.4 | 30 |
| ECR12-12-55 | 55 | 42 | 24.5 | ||||
| ECR12-12-80 | 80 | / | / | ||||
| ECR12-12-110 | 110 | / | / | ||||
| ECR12-12-130 | 130 | / | / |
