Tempat asal:
Shenzhen.China
Nama merek:
Inrover
Sertifikasi:
ISO9001
Hubungi Kami

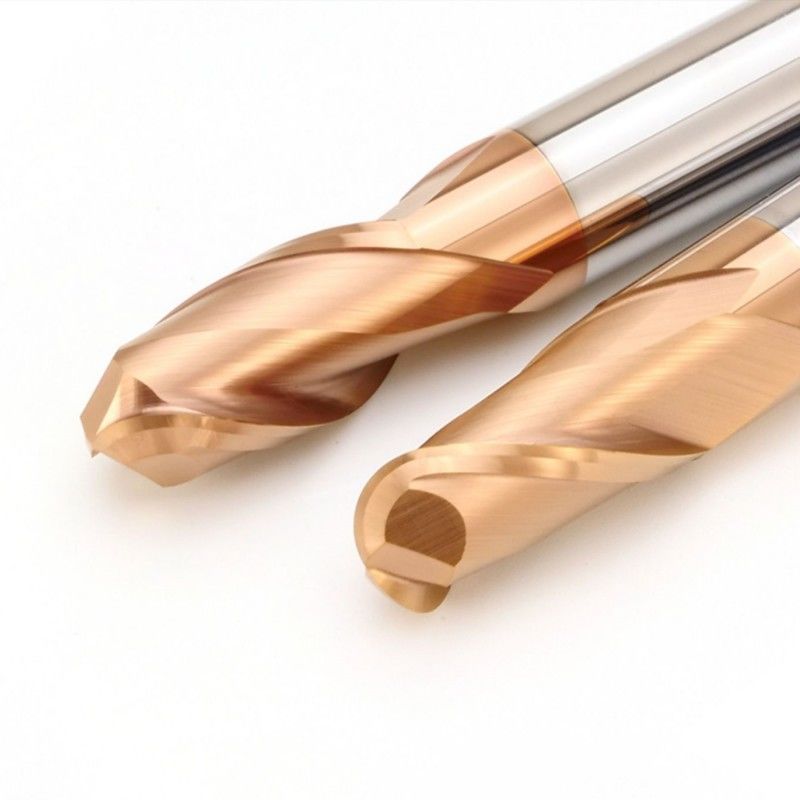

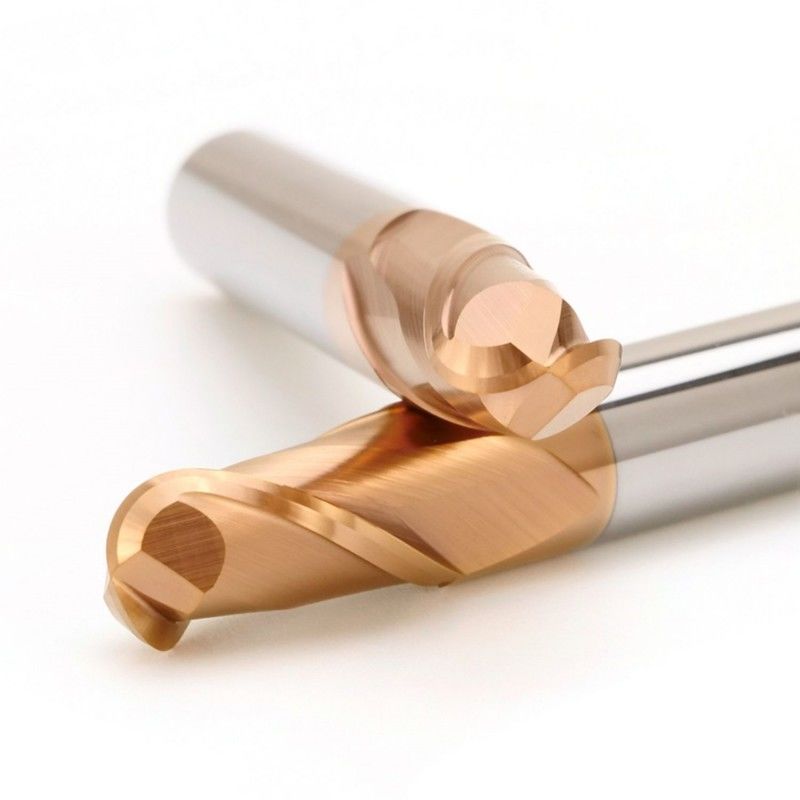

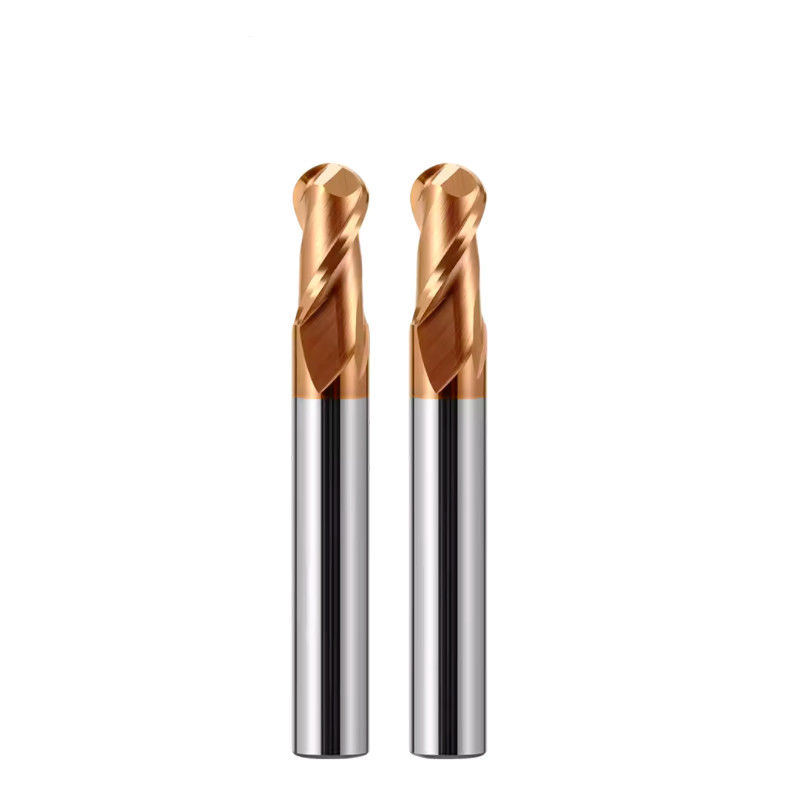

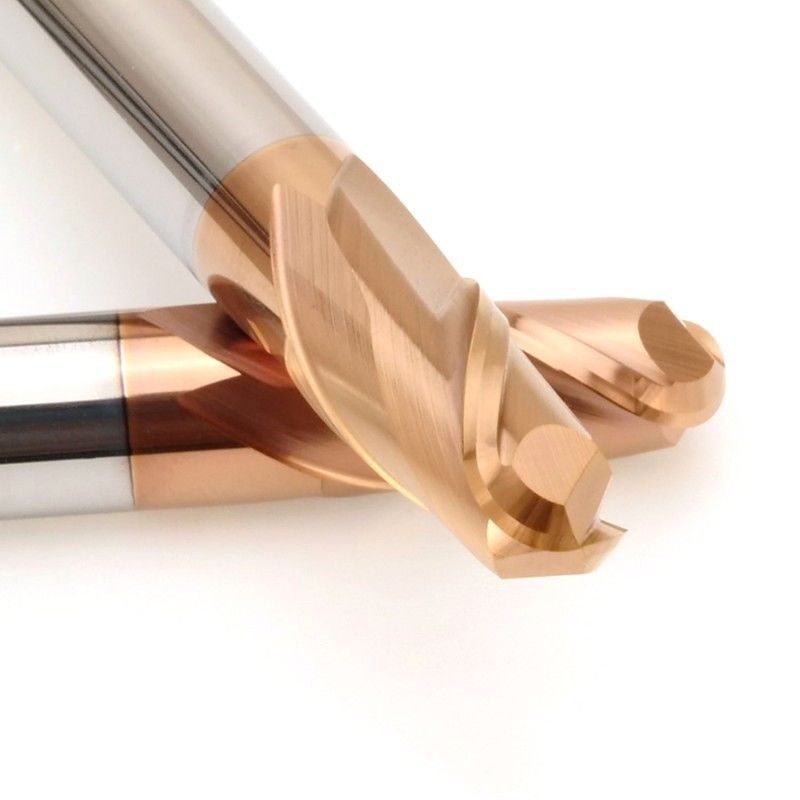

Standar 2 Flutes HRC55 Perunggu Nano Coating Ball Nose End Mill Untuk Cast Iron And Steel
| Memotong Dia (((d) | Pemotongan | R | Shank | Penuh | Flot ((F) |
| 1.0 | 2 | R0.5 | 4 | 50 | 2 |
| 1.5 | 2 | R0.75 | 4 | 50 | 2 |
| 2.0 | 4 | R1.0 | 4 | 50 | 2 |
| 3.0 | 6 | R1.5 | 4 | 50 | 2 |
| 4.0 | 8 | R2.0 | 4 | 50 | 2 |
| 5.0 | 10 | R2.5 | 6 | 50 | 2 |
| 6.0 | 12 | R3.0 | 6 | 50 | 2 |
| 8.0 | 16 | R4.0 | 8 | 60 | 2 |
| 10.0 | 20 | R5.0 | 10 | 75 | 2 |
| 12.0 | 24 | R6.0 | 12 | 75 | 2 |
| 14.0 | 28 | R7.0 | 14 | 80 | 2 |
| 16.0 | 32 | R8.0 | 16 | 100 | 2 |
| 18.0 | 36 | R9.0 | 18 | 100 | 2 |
| 20.0 | 40 | R10.0 | 20 | 100 | 2 |
| Parameter | Rincian |
|---|---|
| Lapisan | Lapisan Nano |
| Diameter batang | D4-D20 |
| Sudut Heliks | 35° |
| Panjang keseluruhan | 50mm-100mm |
| Diameter Pemotongan | 1.0mm-20.0mm |
| Jumlah Flot | 2 |
| Bahan | Karbida padat |
| Panjang Flutu | 2mm-40mm |
| Jenis | Mesin penggiling ujung hidung bola |
| Bahan pengolahan | Baja paduan, besi cor, besi, baja cetakan |
Carbide End Mill menyediakan dukungan teknis dan layanan, termasuk:
