Tempat asal:
Shenzhen.China
Nama merek:
Inrover
Sertifikasi:
ISO9001
Hubungi Kami

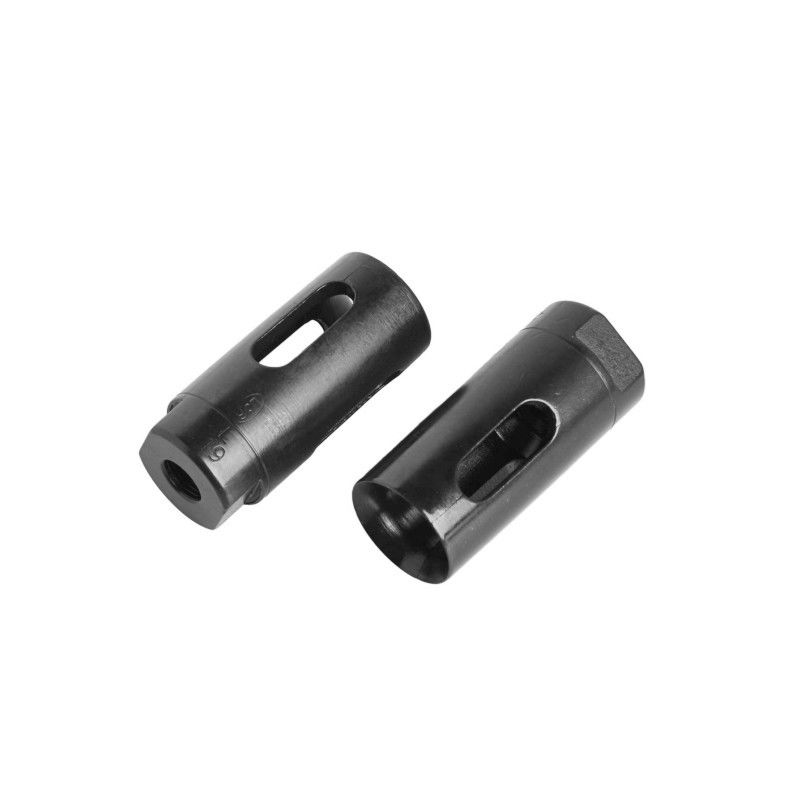

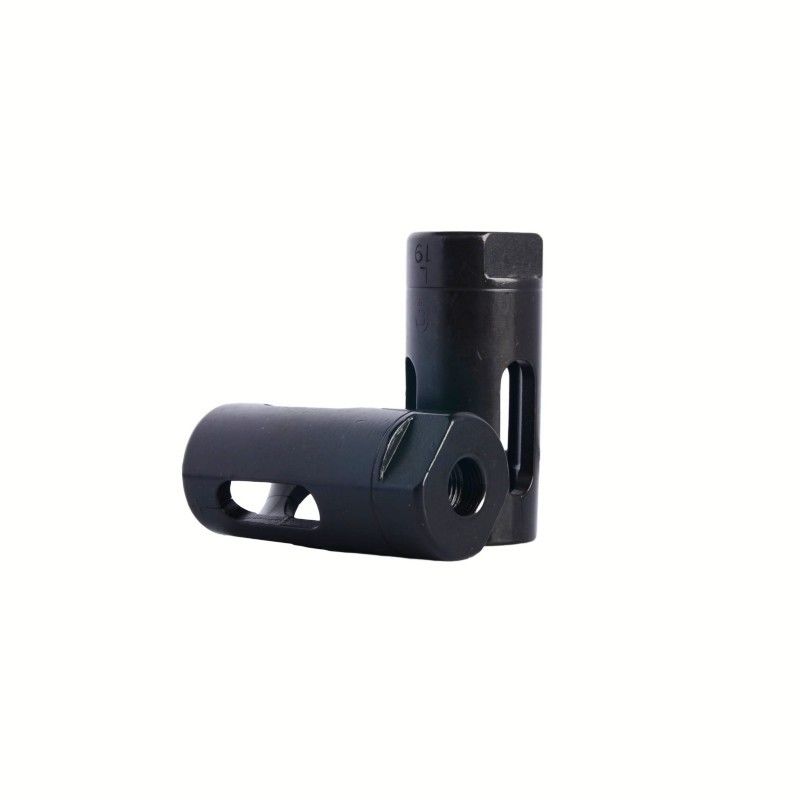

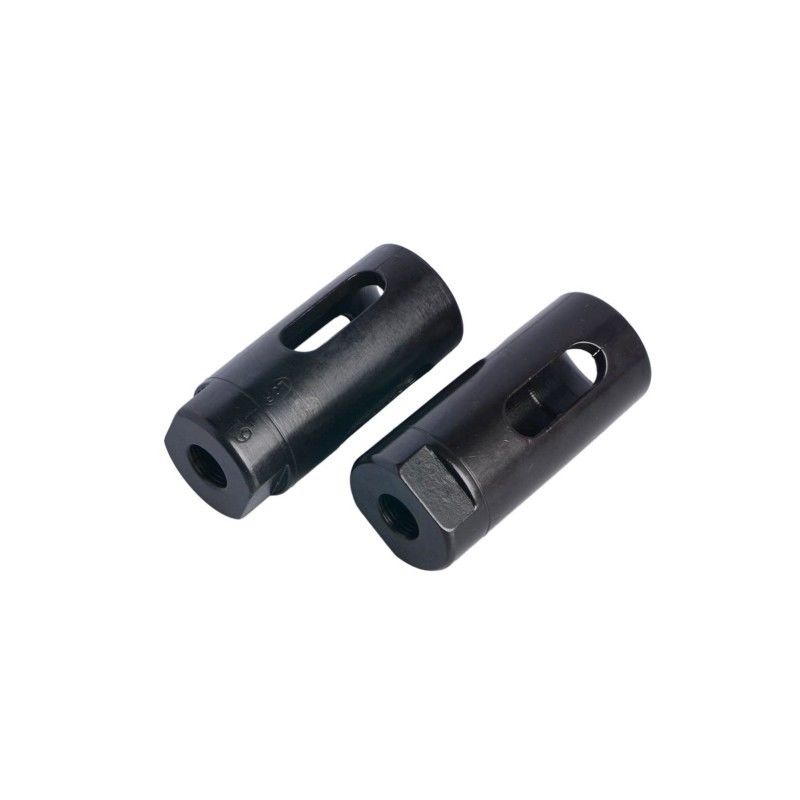

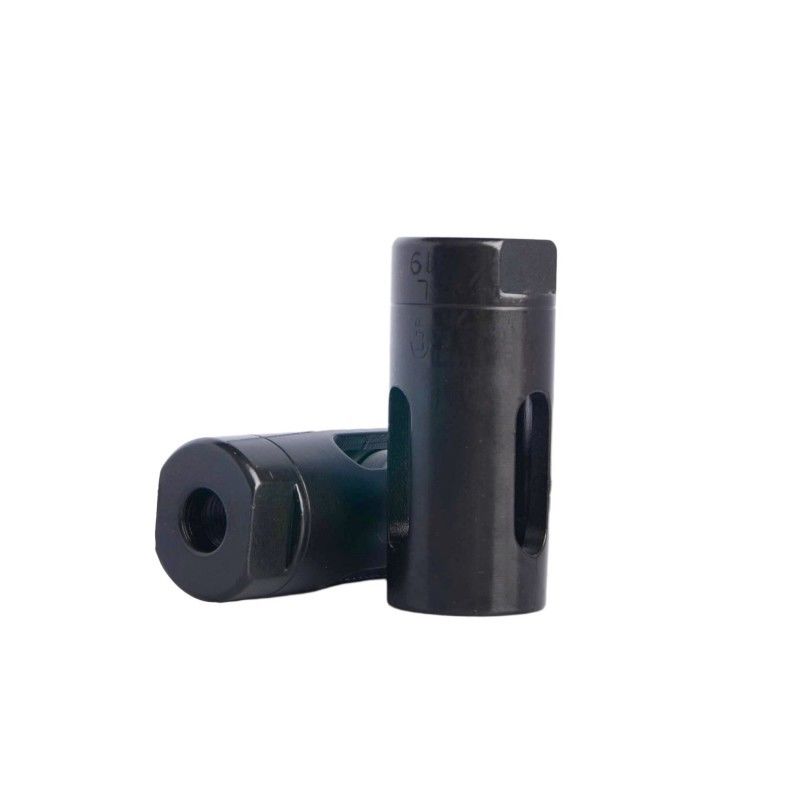

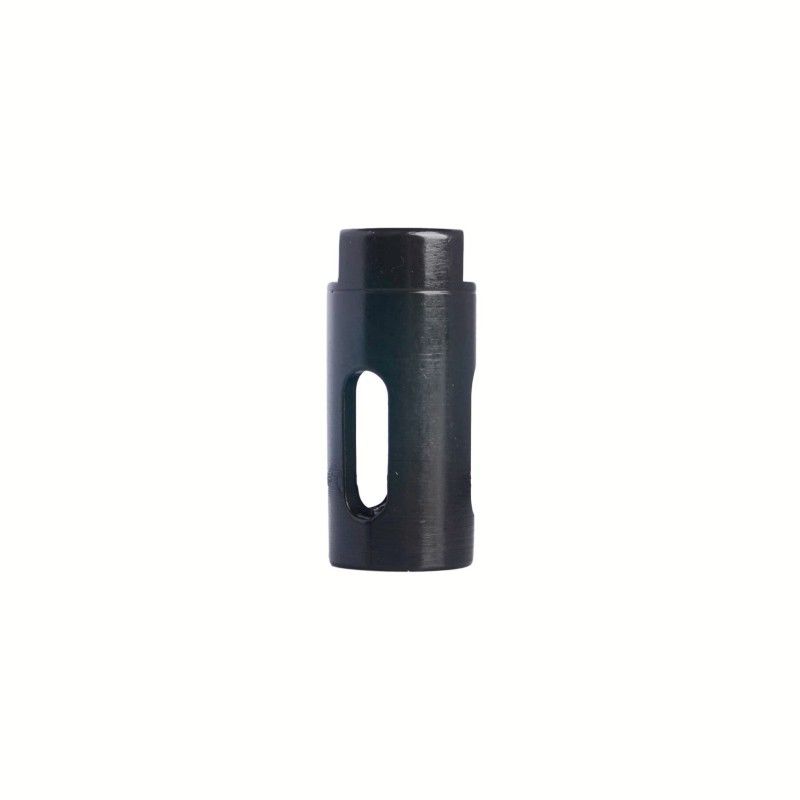

M25P1.5 IEMCA Barfeeder Finger Chuck Untuk Swiss CNC Lathe
IEMCA Finger Chuck/ Barfeed Collet
| Model | ID | OD | L | Pengukur gigi | Tidak, tidak. |
| 4# | 0.8~4.0mm | 5 mm | 98mm | M4P0.7 | 1 |
| 5# | 2.0~4.0mm | 5 mm | 37mm | M4P0.5 | 2 |
| 4-7# | 0.8~4.0mm | 7 mm | 98mm | M4P0.7 | 3 |
| 4-7# | 4.1~6.0mm | 7 mm | 98mm | M4P0.7 | 3 |
| 4-7# | 2.0 ~ 5.5mm | 7 mm | 98mm | M4P0.7 | 3 |
| 7.5# | 2.0 ~ 6.0mm | 7.5mm | 40 mm | M5P0.8 | 4 |
| 10# | 1.5·8.5mm | 10 mm | 42 mm | M6P0.75 | 5 |
| 12# | 1.5 ~ 10.5mm | 12 mm | 42 mm | M7P0.75 | 6 |
| 15# | 2.0 ~ 13.0mm | 15 mm | 42 mm | M8P1.0 | 7 |
| 16# | 12.0 ~ 14.0mm | 16 mm | 42 mm | M8P1.0 | 7 |
| 20# | 3.0~18.5mm | 20 mm | 60 mm | M10P1.0 | 8 |
| 23# | 16.0 ~ 21.0mm | 23 mm | 60 mm | M10P1.0 | 9 |
| 25# | 16.5 ~ 23.0mm | 25 mm | 60 mm | M10P1.0 | 10 |
| 27# | 16.5 ~ 25.5mm | 27 mm | 60 mm | M10P1.0 | 9 |
| 32# | 4.0 ~ 30.0mm | 32 mm | 80 mm | M25P1.5 | 11 |
| 35# | 28.5 ~ 32.0mm | 35 mm | 80 mm | M25P1.5 | 12 |
| 37# | 31.0~34.0mm | 37mm | 80 mm | M25P1.5 | 13 |
| 38# | 31.0 ~ 35.0mm | 38 mm | 80 mm | M25P1.5 | 13 |
| 40# | 21.0 ~ 36.5mm | 40 mm | 80 mm | M25P1.5 | 13 |
| 42# | 31.5 ~ 40.0mm | 42 mm | 80 mm | M25P1.5 | 13 |
| 45# | 38.5 ~ 42.2mm | 45 mm | 80 mm | M25P1.5 | 13 |
| 51# | 42.5 ~ 48.0mm | 51mm | 80 mm | M25P1.5 | 14 |
