Tempat asal:
Shenzhen.China
Nama merek:
Inrover
Sertifikasi:
ISO9001
Hubungi Kami

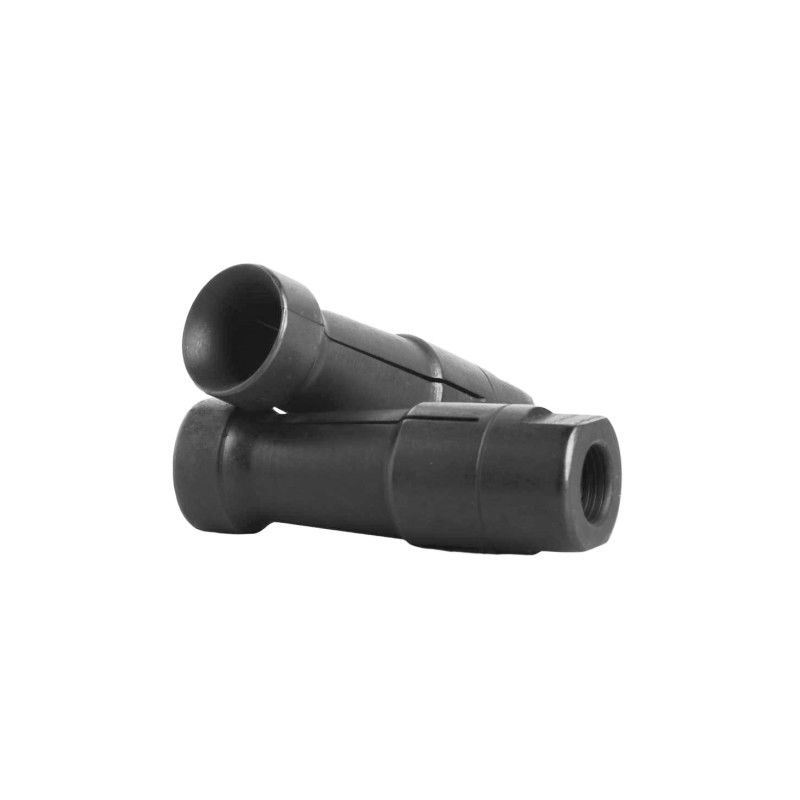

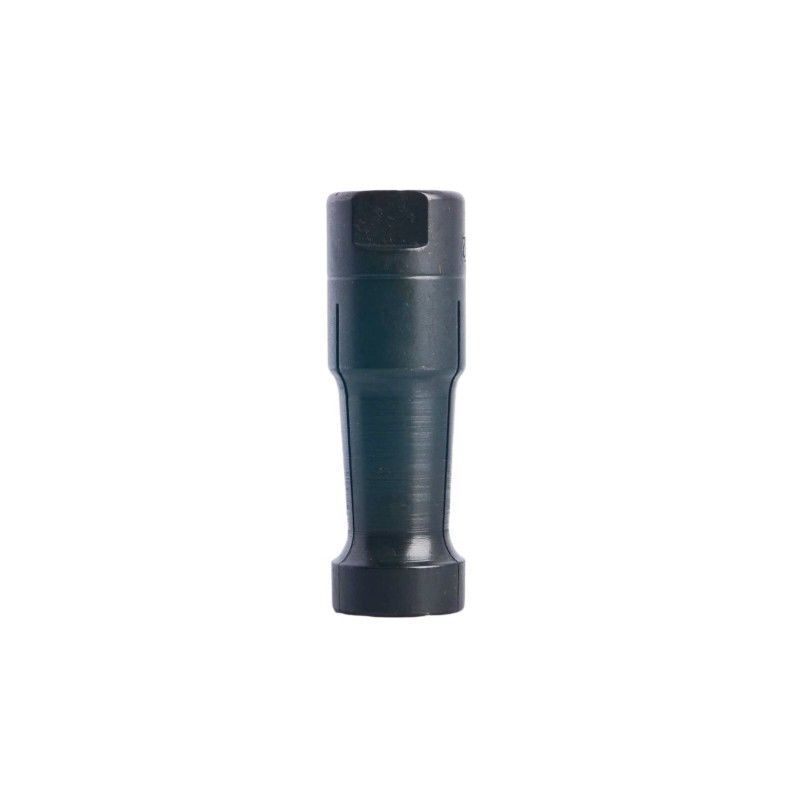

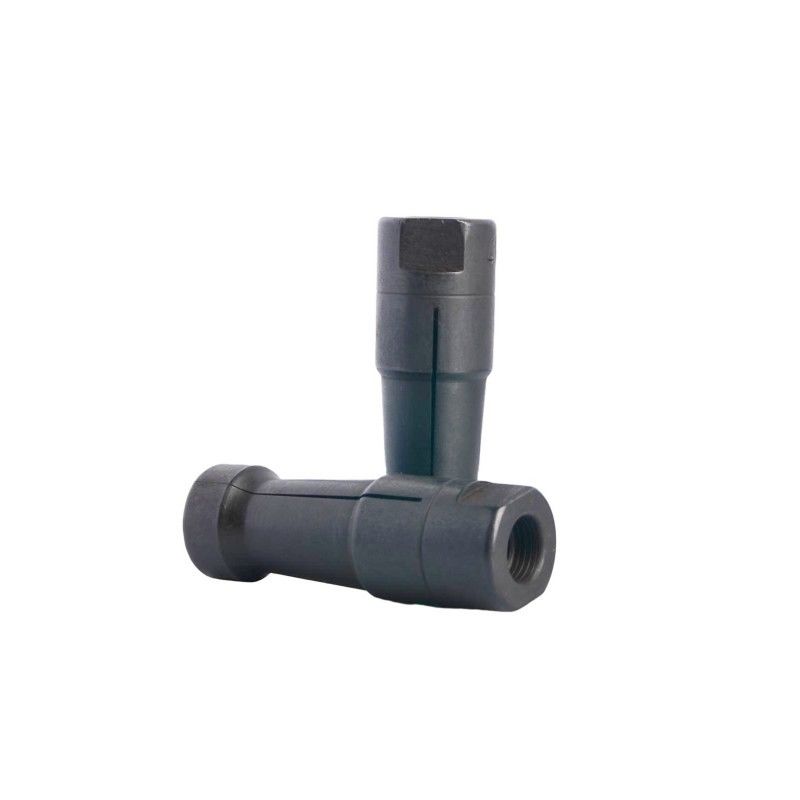

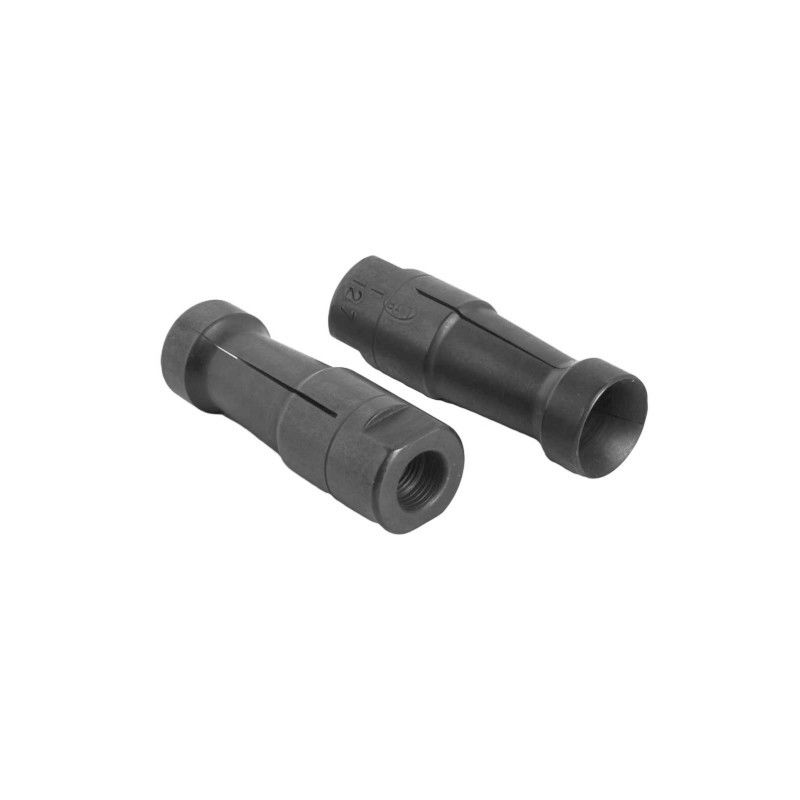

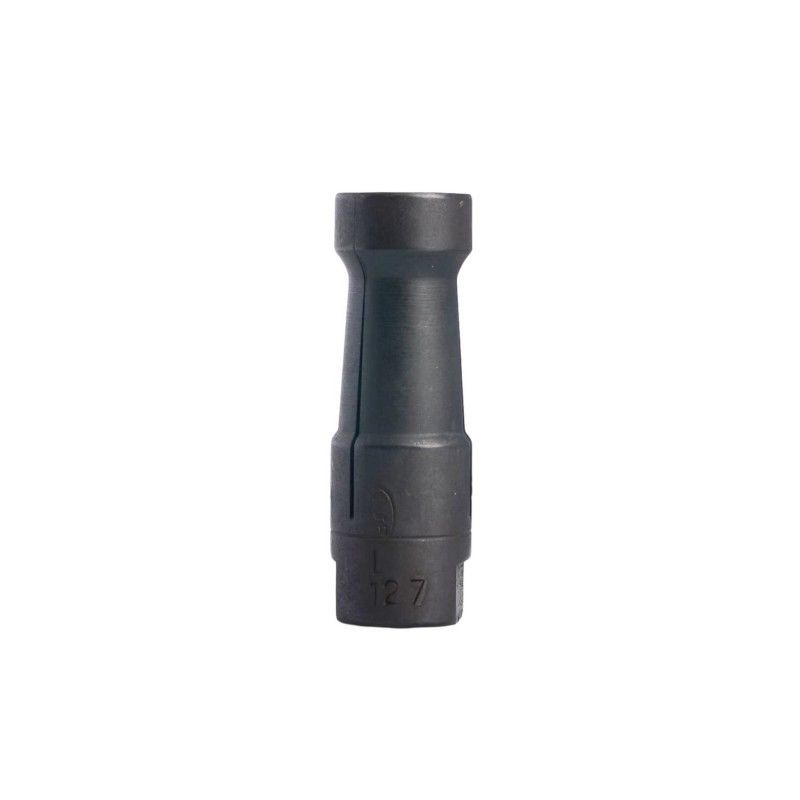

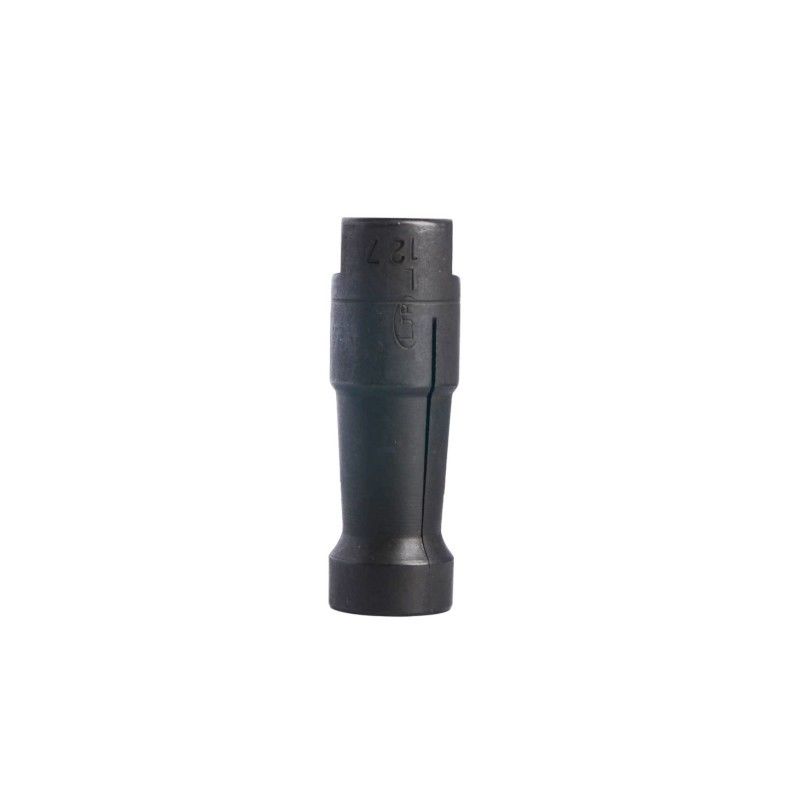

Berkinerja tinggi Spring Lathe Finger Chuck M9 * P1.0
LNS Finger Chuck/ Barfeed Collet
| Model | ID | OD | L | Pengukur gigi | Tidak, tidak. |
| 4# | 0.8~4.0mm | 5 mm | 98mm | M4P0.7 | 1 |
| 4-7# | 0.8~4.0mm | 7 mm | 98mm | M4P0.7 | 2 |
| 4-7# | 4.1~6.0mm | 7 mm | 98mm | M4P0.7 | 2 |
| 4-7# | 2.0 ~ 5.5mm | 7 mm | 98mm | M4P0.7 | 2 |
| 4# | 0.8~4.0mm | 5 mm | 28 mm | M4P0.7 | 3 |
| 4-7# | 1.5 ~ 6.0mm | 7 mm | 28 mm | M4P0.7 | 4 |
| 7# | 1.3 ~ 6.0mm | 7 mm | 50 mm | M4P0.7 | 5 |
| 7# | 1.3 ~ 6.5mm | 8 mm | 50 mm | M4P0.7 | 5 |
| 7# | 6.6 ~ 7.0mm | 9 mm | 50 mm | M4P0.7 | 5 |
| 8.5# | 1.5 ~ 7.8mm | 9.5mm | 45 mm | M5P0.8 | 6 |
| 8.5# | 7.9 ~ 8.5mm | 10 mm | 45 mm | M5P0.8 | 6 |
| 8.5# | 3.0 ~ 10.5mm | 12 mm | 45 mm | M5P0.8 | 7 |
| 8.5# | 10.8 ~ 11.0mm | 13 mm | 45 mm | M5P0.8 | 8 |
| 8.5# | 11.5 ~ 12.0mm | 14 mm | 45 mm | M5P0.8 | 8 |
| 8.5# | 12.5 ~ 13.0mm | 15 mm | 45 mm | M5P0.8 | 8 |
| 8.5# | 13.5mm | 15.5mm | 45 mm | M5P0.8 | 8 |
| 20# | 2.5 ~ 13.0mm | 15 mm | 60 mm | M9P1.0 | 9 |
| 20# | 11.5 ~ 15.1mm | 18 mm | 60 mm | M9P1.0 | 10 |
| 20# | 15.2~16.0mm | 19 mm | 60 mm | M9P1.0 | 10 |
| 20# | 16.5 ~ 18.0mm | 20 mm | 60 mm | M9P1.0 | 10 |
| 20# | 18.5 ~ 19.0mm | 22 mm | 60 mm | M9P1.0 | 11 |
| 20# | 19.5 ~ 21.0mm | 24 mm | 60 mm | M9P1.0 | 11 |
| 20# | 21.5 ~ 22.0mm | 25 mm | 60 mm | M9P1.0 | 11 |
| XT326 | 18.0~19.5mm | 22 mm | 60 mm | M9P1.0 | 12 |
| XT326 | 20.0 ~ 21.0mm | 23 mm | 60 mm | M9P1.0 | 12 |
| XT326 | 21.5 ~ 23.0mm | 26 mm | 60 mm | M9P1.0 | 12 |
| XT326 | 24.0 ~ 26.0mm | 28 mm | 60 mm | M9P1.0 | 12 |
| SN20# | 3.0~18.0mm | 20 mm | 60 mm | M10P1.0 | 13 |
| SN25# | 16.5 ~ 23.0mm | 25 mm | 60 mm | M10P1.0 | 14 |
| SN27# | 16.5 ~ 25.0mm | 27 mm | 60 mm | M10P1.0 | 14 |
| SN32# | 23.5 ~ 28.0mm | 32 mm | 60 mm | M17P1.0 | 15 |
